Last update 1 December 2020
Additional information is always gratefully received, whether entirely new records (particularly historical records), or information to fill in gaps or correct errors, via the contact link under the Miscellaneous entry in the navigation bar above. Thank you.
Please select a starting letter from the links below:
| Code | Signal Box | Note | ELR | Mileage | Opened | Closed | Control to |
|---|
| Eagle Crossing | DPJ | 2m 21ch | 1970 | 1993? | |||
| EN | Eaglescliffe North | also had signals lettered D and J, with no number | LEN3 | 3 June 1928 | 9 February 1969 | Bowesfield (B) | |
| D | Down direction automatic signals | ||||||
| U | Up direction automatic signals | ||||||
| ES | Eaglescliffe South | LEN3 | 9 February 1969 | Bowesfield (B) and Urlay Nook (UN) | |||
| D | Down direction automatic signals | ||||||
| U | Up direction automatic signals | ||||||
| ES | Earles Sidings | MAS | 165m 20ch | 1929 | |||
| WFK | Earley | RDG2 | 66m 4ch | ≈1876 | 4 February 1973 | Wokingham (WM) | |
| A | Automatic signals | ||||||
| WG | Earlsfield | BML1 | 5m 45ch | 1 April 1884 | 13 November 1966 | Wimbledon (W) | |
| CR | Earlswood | RED2 VTB2 |
23m 15ch 21m 36ch |
November 1905 | 2 July 1983 | Three Bridges [new] (T) | |
| E | Earsdon | Planned closure mid-1960s (cancelled): control would have been to Holywell | BNE EJM |
2m 53ch 7m 8ch |
27 January 1985 | Newsham South (N) | |
| R | Mechanical distant signals | ||||||
| E | Easington | Code used from late January 1977 | LEN3 | 80m 35ch | 1905 | 10 March 1996 | Dawdon (DN) |
| Easington Colliery | had draw-ahead signals in colliery sidings lettered A to D, with no number | ||||||
| EB | East Boldon | Code used by 1979 | LEN3 | 93m 22ch | ≈1870 | 11 January 2002 | Tyneside (T) |
| E | Eastbourne | Original code | KJE3 | 23m 59ch | 1882 | late on 13 February 2015 delayed from 22 November 2013 |
Three Bridges [new] (EB) |
| EB | Later code | ||||||
| CW | East Croydon | Code used by 1955 | VTB2 | 10m 37ch | 8 May 1955 | 7 April 1984 | Three Bridges [new] (T) |
| CA | Automatic signals | ||||||
| CW | East Croydon North | VTB2 | 10m 25ch | 1896 | 8 May 1955 | East Croydon (CW) | |
| EF | East Farleigh | PWS1 | 42m 76ch | 1892 | delayed from 3 April 2015 |
East Kent Signalling Centre (EK) | |
| E | Eastfield [Peterborough] | ECM1 | 77m 2ch | 31 December 1893 | |||
| QC | Eastfields Road Crossing | Gate box: line controlled by Streatham Junction (BC) | BTH1 | 9m 19ch | 30 September 1962 | 28 June 1981 | Victoria Signalling Centre (VC) |
| EG | East Gate Junction | Later code replacing E | COC | 53m 14ch | 1 December 1924 | 2 March 2009 | Colchester [new] (CO) |
| E | Code used by 1962 | ||||||
| D | Down line automatic signals | ||||||
| RD | Down line automatic repeater signals | ||||||
| RU | Up line automatic repeater signals | ||||||
| U | Up line automatic signals | ||||||
| EH | East Ham depot control room | FSS1 | |||||
| H1 | East Ham No 1 | FSS1 | 6m 6ch | May 1959 | East Ham No 2 (H2) | ||
| H2 | East Ham No 2 | FSS1 | 6m 32ch | 7 May 1960 in part; 1 May 1961 remainder |
Barking [LUL] (FF) in part; Barking (BK) remainder |
||
| EH | East Holmes | SPD3 | 82m 60ch | May 1873 | 19 July 2008 | Lincoln Control Centre (LG) | |
| EK | East Kent Signalling Centre | VIR | 36m 3ch | 24 December 2011 | |||
| EV | Sittingbourne area signals. Code used from 29 March 2016 | ||||||
| NK | North Kent line signals. Code used from 7 April 2015 | ||||||
| R | Banner repeater signals | ||||||
| ZW | Eastleigh | BML1 | 73m 17ch | 6 November 1966 | 14 September 1981 | Eastleigh [new] (E) | |
| E | Eastleigh [new] | Code used from 1981 | BML1 | 73m 17ch | 14 September 1981 | ||

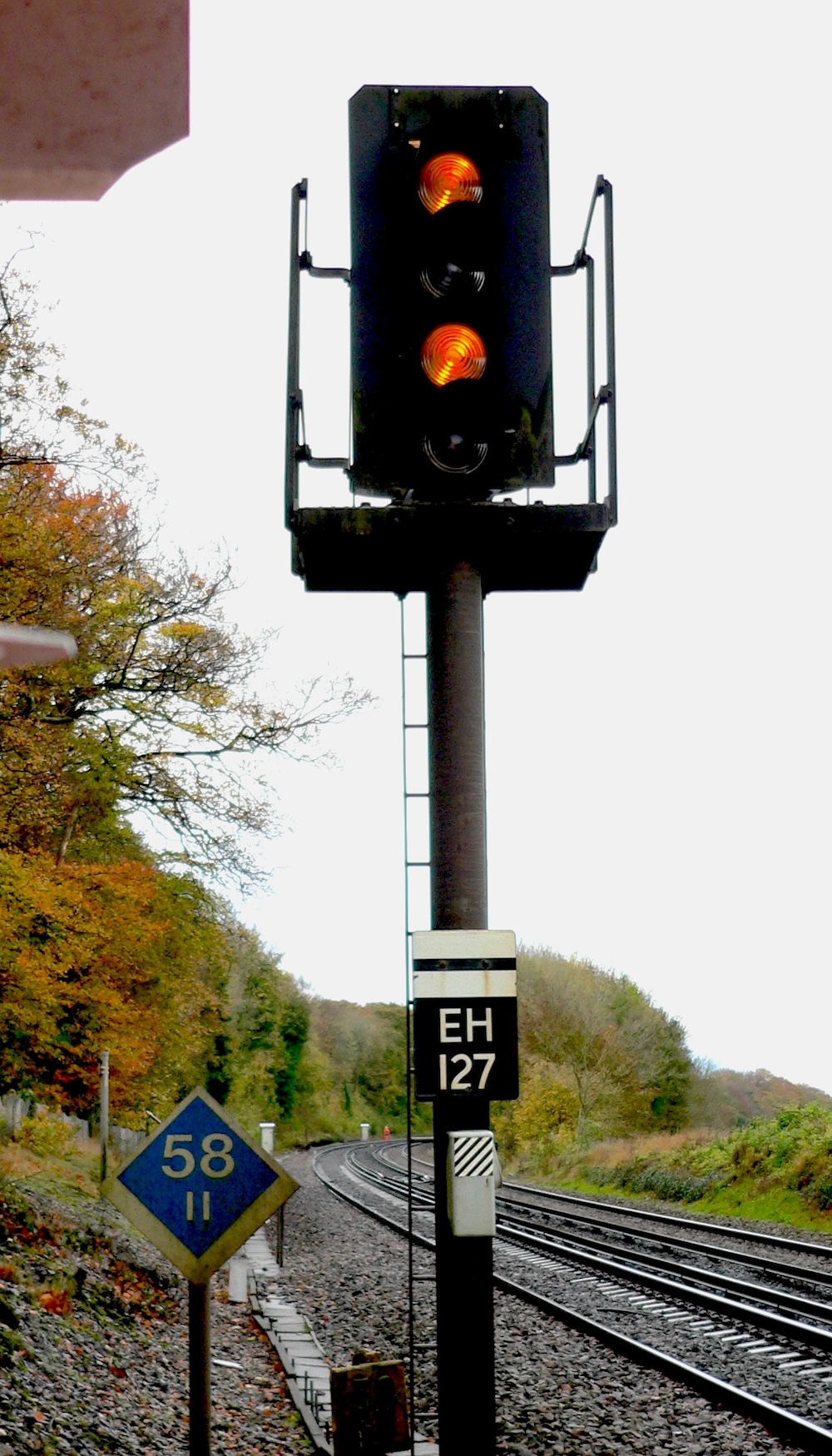

| EH | Worting Junction to Southampton Parkway section (some signals may still carry code E). Wrong direction signals carry suffix X, and their repeaters XR (e.g. EH269XR) | ||||||
| GF | Ground frame controlled signals in LHS/Back Road sidings | ||||||
| WA | Automatic signals | ||||||
| Eastleigh C | BML1 | 73m 7ch | 1918 | ||||
| Eastleigh DEMU Depot | EYD | 74m 32ch? | 7 July 1968 | ||||
| ETF | 74m 25ch? | ||||||
| E | East Linton | ECM8 | 23m 54ch | 21 November 1977 | Edinburgh (EF) | ||
| ELJ | East London Junction | LTN1 | 0m 48ch | April 1875 | 11 September 1949 | Liverpool Street (L) | |

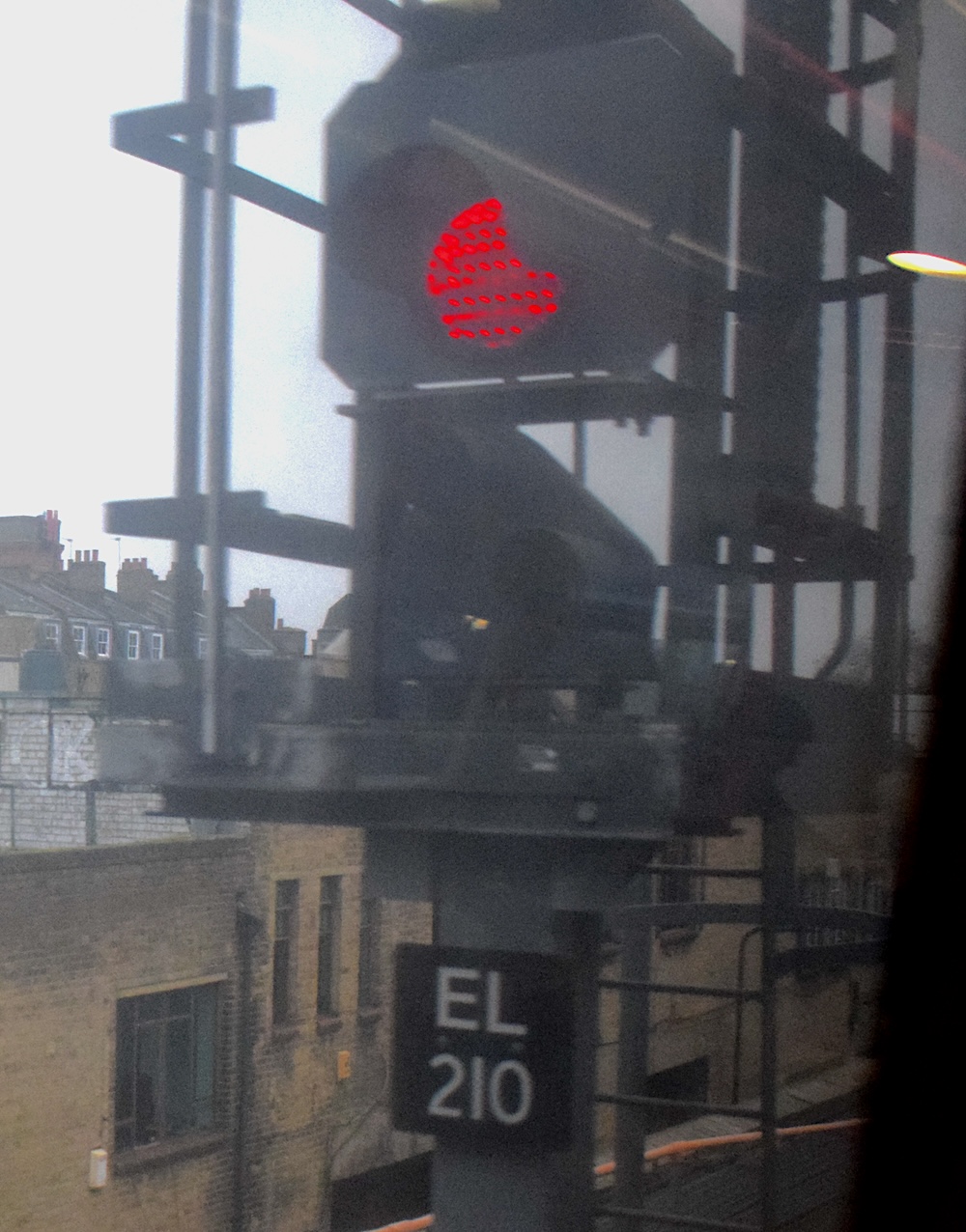

| EL | East London Line SCC [New Cross Gate] | ELL1 | 5m 33ch | 18 January 2010 | |||
| BS | Silwood depot berthing sidings stop boards | ||||||
| BK | East Midlands Control Centre | Bedford to Kettering section (planned) | DBP1 | 0m 15ch | 6 August 2007 temporarily in Trent PSB; 29 August 2008 in own building |
||
| CB | Chesterfield to Barrow Hill section. Code used from 1 September 2008 | ||||||
| CS | Chesterfield to Sheffield section. Code used from 1 September 2008 | ||||||
| CT | Former Croft signals. Code used from 2 January 2012 | ||||||
| DC | Derby to Chesterfield section. Code used from 1 September 2008 | ||||||
| DW | Derby to Wichnor section. Code used from 3 September 2018 | ||||||
| DY | Former Derby PSB West Panel area signals. Code used from 11 May 2015 | ||||||
| EC | Etches Park carriage sidings to Chaddesden sidings. Code used from 3 September 2018 | ||||||
| GN | Grantham to Nottingham section. Code used from 10 August 2013 | ||||||
| KM | Kettering to Manton Junction section | ||||||
| LR | Former Leicester signals. Code used from 2 January 2012 | ||||||
| MS | Mansfield Junction to Kirkby Summit section. Code used from 12 September 2011 | ||||||
| NN | Nottingham to Newark section. Code used from 10 August 2013 | ||||||
| PK | Pye Bridge to Kirkby Lane End Junction section | ||||||
| R | One former Leicester area banner repeater (LR54BR carried R54BR) | ||||||
| RT | Radford to Trowell section | ||||||
| SS | Sheet Stores Junction to Stenson Junction section. Code used from 27 December 2009 | ||||||
| SS | Sinfin sidings points (code not carried on signals) | ||||||
| ST | Syston to Trent section. Code used from 27 December 2009 | ||||||
| TC | Trent to Chesterfield section. Code used from 1 September 2008 | ||||||
| TD | Trent to Derby section. Code used from 27 December 2009 | ||||||
| TN | Trent to Nottingham section. Code used from 27 December 2009 | ||||||
| TT | Trent to Trowell section | ||||||
| WH | Former West Hampstead signals (planned) | ||||||
| X | "Creep" signals at Kettering | ||||||
| WBE | East Putney | PPW | 5m 64ch | 8 March 1889 | 11 February 1991 delayed from 24 September 1990 |
Wimbledon (W) | |
| Eastrington | HUL1 | 19m 25ch | 17 September 1989 | Gilberdyke Junction (G) | |||
| EK | East Suffolk Junction | LTN1 | 69m 47ch | 1912 | 5 April 1984 | Colchester [new] (CO) | |
| MU | East Usk | Mechanical signals | SWM2 | 157m 2ch | 16 April 1961 as temporary panel: unclear whether in separate building Converted from ground frame February 2000 |
4 January 2010 (official) burnt down 19 April 2009 |
South Wales Control Centre (NT) |
| EU | At least one signal | ||||||
| M | At least one signal | ||||||
| U | Panel signals | ||||||
| Eastville | Downgraded to gate box 18 April 1973 | GRS3 | 116m 78ch | April 1889 inspected 22 November 1890 |
5 March 1989 | Bellwater Junction (BJ) | |
| B | Ebbw Junction | SWM2 | 160m 11ch | 1898 | 19 May 1963 | Newport (N) | |
| ES | Eccles | DSE | 27m 59ch | 1933 | |||
| EC | Eccles Crossing | HXS3 | 10m 78ch | 1912 | 11 March 1994 | Merseyrail (ML) | |
| EW | Ecclesfield West | SHB | 164m 24ch | 1896 | 10 April 1998 | Barnsley (BY) | |
| ER | Eccles Road | ETN | 104m 44ch | 1883 | 2 December 2012 | Cambridge (EN) | |
| EE | Edale | MAS | 169m 23ch | 1893 | |||
| E | Code given on 2006 signalling plan | ||||||
| EV | Eden Valley | CGJ7 | ≈47m 78ch | 17 March 1973 | Carlisle (CE) | ||
| EH | Edge Hill | Code used to ≈1985 | DSE WJL3 |
1m 57ch 191m 75ch |
28 August 1961 | 3 November 2019 | Manchester Rail Operating Centre (LE) |
| LE | Code used from ≈1985 | ||||||
| Edge Hill No 13 | See Exhibition Junction | ||||||
| EL | Edge Lane | Burnt down ≈28 February 1987 | SCT1 | ≈0m 51ch | Edge Hill (EH) | ||
| EY1 | Edgeley Junction No 1 | Code used for some signals by October 1978. Code used for all signals from 3 September 2004 | CMP1 | 182m 36ch | 1884 | ||

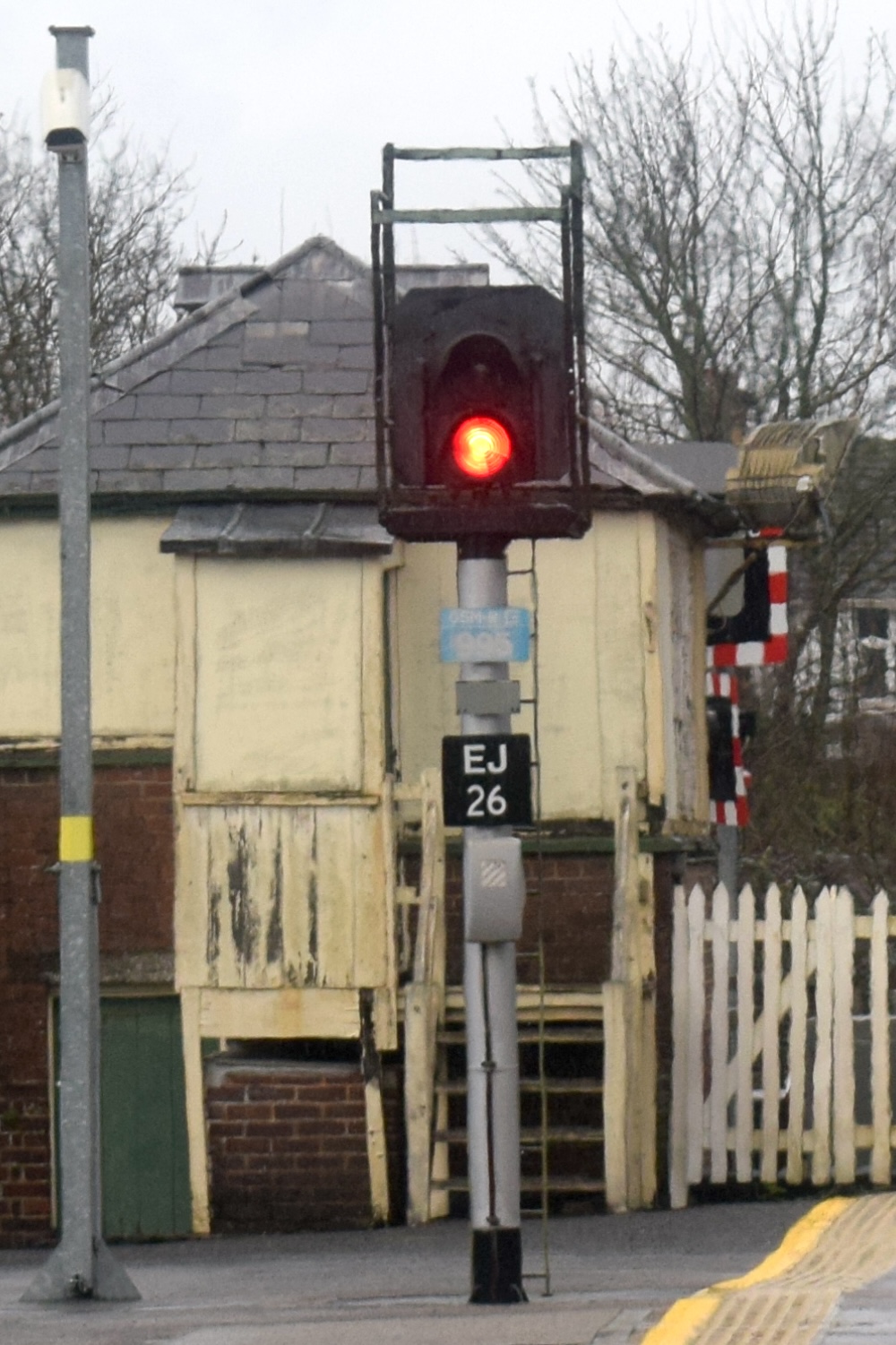

| EJ | Earlier code | ||||||
| EJ1 | Code mentioned in 1989: unclear if carried | ||||||
| EY | Code mentioned in 1986: unclear if carried | ||||||
| EY2 | Edgeley Junction No 2 | Code used from 3 September 2004 | CMP2 | 182m 54ch | 1884 | ||
| E2 | Unclear whether code used | ||||||
| E | Edinburgh | Edinburgh interlocking. Code used from 1976 | ECM9 | 0m 7ch | 3 October 1976 | ||
| CC | Former Cowlairs signals (Cowlairs interlocking). Code used from 6 October 2013 | ||||||
| CE | Former Cowlairs signals (Eastfield interlocking). Code used from 6 October 2013 | ||||||
| CG | Former Cowlairs signals (Gartshore interlocking). Code used from 6 October 2013 | ||||||
| CN | Former Cowlairs signals (Garnqueen interlocking). Code used from 6 October 2013 | ||||||
| CQ | Former Cowlairs signals (Queen Street interlocking). Code used from 6 October 2013 | ||||||
| CS | Springburn interlocking. Code used from 6 October 2013 | ||||||
| EA | Prestonpans interlocking. Code used from 1977 | ||||||
| EAL | Almond interlocking. Code used from 18 May 2015 | ||||||
| EB | Ladybank interlocking. Code used from 1980 | ||||||
| EC | Cowdenbeath interlocking. Code used from 1981 | ||||||
| ECL | Larbert interlocking. Code used from 27 December 2017 | ||||||
| ED | Dunbar and Oxwellmains interlockings. Code used from 1976 | ||||||
| EF | Drem interlocking. Code used from 1977 | ||||||
| EG | Grantshouse interlocking. Code used from 1977 | ||||||
| EH | Haymarket interlocking. Code used from 1975 | ||||||
| EJ | Midcalder Junction interlocking. Code used from 1981 | ||||||
| EJW | West Calder interlocking. Code used from 30 August 2018 | ||||||
| EK | Kirkcaldy interlocking. Code used from 1980 | ||||||
| EL | Linlithgow interlocking. Code used from 1979 | ||||||
| EM | Monktonhall interlocking. Code used from 1977 | ||||||
| EM | Millerhill interlocking. Code used from 25 November 2012 | ||||||
| EMB | Borders Rail Link interlocking. Code used from 8 June 2015 | ||||||
| EN | Newbridge interlocking. Code used from 1978 | ||||||
| EO | Townhill and Charlestown interlockings. Code used from 1980 | ||||||
| EP | Portobello interlocking. Code used from 1976 | ||||||
| EPB | Bo'ness interlocking signals. Code used from 25 November 2012 | ||||||
| EPJ | Polmont interlocking signals. Code used from 25 November 2012 | ||||||
| EPR | Portobello interlocking banner repeater signals | ||||||
| ER | Markinch interlocking. Code used from 1980 | ||||||
| ES | Slateford interlocking. Code used from 1977 | ||||||
| ET | Thornton and Redford interlockings. Code used from 1980 | ||||||
| EU | Burntisland interlocking. Code used from 1979 | ||||||
| EV | Inverkeithing interlocking. Code used from 1979 | ||||||
| EVR | Inverkeithing interlocking banner repeater signals | ||||||
| EW | Winchburgh interlocking. Code used from 1979 | ||||||
| EY | Dalmeny and North Queensferry interlockings. Code used from 1979 | ||||||
| GJ | Former Greenhill Junction signals. Code used from 27 December 2017 | ||||||
| RE | Former repeater signals (now superseded by suffix BR) | ||||||
| RU | Repeaters to up line automatic signals. Code use by 1977 | ||||||
| U | Up line automatic signals. Code used by 1977 | ||||||
| WW | Effingham Junction | NGL | 21m 20ch | 12 July 1925 | 20 April 1969 | Guildford [panel] (WX) | |
| P | Eggborough Power Station | EGG2 | 18 July 1966? | ||||
| A | Draw ahead signals | ||||||
| B | |||||||
| EN | Egginton Junction | NSS | 26m 69ch | January 1877 | |||
| WFG | Egham | Downgraded to gate box 8 September 1974 | RDG1 | 21m 7ch | ≈1880 | 3 February 1975 | Feltham (F) |
| E | Eglinton Street [Glasgow] | Believed code not carried | 15 November 1908 | 2 January 1961 | High Street Junction (HS) | ||
| D | Egmanton | Down direction automatic signals | ECM1 | 130m 29ch | 1899 | 24 October 1976 | Carlton (CA) |
| E | Elderslie No 1 | AYR3 | 8m 74ch | 20 December 1908 | 6 October 1985 | Paisley [new] (PE) | |
| E | Elgin | Named Elgin West to 11 November 1973. Code used 2002 to 2003 | ANI2 | 11m 74ch | 4 April 1951 | 7 October 2017 | Inverness (HE) |
| EL | Code used from 11 January 2003 | ||||||
| E | Elland | MVN2 | 31m 61ch | 21 May 1958 | 26 July 2009 | Greetland Emergency Operating Panel (HM) | |
| R | Distant signals | ||||||
| U | Up line automatic signals believed that down line indicates to Brighouse |
||||||
| Ellesmere Port No 1 | HHJ | 2m 71ch | 4 October 1971 | ||||
| Ellesmere Port No 2 | HHJ | 3m 26ch | 6 November 1983 | Ellesmere Port (EP) | |||
| Ellesmere Port No 3 | HHJ | 3m 34ch | June 1967 | Ellesmere Port No 2 | |||
| EP | Ellesmere Port No 4 | Named Ellesmere Port to 6 November 1983. Built on base of original (burnt down) Ellesmere Port No 4 | HHJ | 3m 70ch | 1972 | ||
| Ellesmere Port No 5 | HHJ | 4m 43ch | 6 November 1983 | Ellesmere Port (EP) | |||
| Ellesmere Port No 6 | See Ellesmere Port No 4 | ||||||
| EBP | Elmers End | LCH | 27 May 1882 | 27 September 1975 | London Bridge (L) | ||
| EC | Elmhurst Crossing | LEC2 | ≈118m 22ch | Lichfield Trent Valley Low Level (LD) | |||
| EL | Elmswell | Demolished 1986 | CCH | 37m 14ch | 1887 | 11 August 1985 | Colchester [new] (CO) |
| E | Elmton & Creswell Junction | Probably switched out at 2012, though switched in again about once a month | PSE | 149m 37ch | 1946 | ||
| EC | |||||||
| E | Elsecar Junction | Named Broomhill to 17 November 1985. Downgraded to gate box from renaming | PED3 | 12m 10ch | August 1891 | 19 June 1982 | Line closed |
| U | Elsenham | Downgraded to gate box 11 December 1983. Up direction automatic signals | BGK | 35m 40ch | 20 June 1932 | Cambridge (CA) | |
| RU | Repeaters to up direction automatic signals | ||||||
| E | Elsham | DOW | 31m 34ch | 1885 | 3 March 2003 | Elsham [temporary panel] (EM) | |
| EM | Elsham [temporary panel] | DOW | 31m 34ch | 3 March 2003 | 1 November 2004 | Elsham [reopened] (EM) | |
| EM | Elsham | Reopened original 'box following rebuilding | DOW | 31m 34ch | 1 November 2004 | 30 December 2015 | York Rail Operating Centre (BD) |
| Eltham | See Mottingham | ||||||
| E | Elvanfoot | Code used from 1972 | WCM1 | 52m 35ch | 14 November 1916 | 20 July 1972 | Abington (A) |
| ED | Ely Dock Junction | BGK SOB2 |
69m 73ch 12m 27ch |
1928 | 10 April 1992 | Cambridge (CA) | |
| ENJ | Ely North Junction | BGK | 71m 63ch | 1926 | 27 April 1992 | Cambridge (CA) | |
| EJ | Code reported in 1980: unclear if carried | ||||||
| ESN | Ely Station North | BGK | 70m 38ch | 1880 | 10 April 1992 | Cambridge (CA) | |
| EN | |||||||
| ET | Enfield Town | ENT | 10m 40ch | 1905 | 26 November 2001 | Liverpool Street [new] (L) | |
| D | Down line automatic signals | ||||||
| RU | Repeaters to up line automatic signals | ||||||
| U | Up line automatic signals | ||||||
| ES | Engine Shed [Old Oak Common] | OOC1 | 2m 79ch | 2 May 1937 | 15 December 1977 | to hand levers | |
| ES | Engine Shed Junction | WCR | ≈25 June 1983 | Edge Hill (EH) | |||
| EJ | Engine Shed Junction | SPC1 | ≈1m 66ch | 5 December 1981 | West Hampstead (WH) | ||
| E | Engine Shed Junction | TJC3 | 195m 25ch | Leeds (L) | |||
| EJ | |||||||
| ES1 | Engine Sidings No 1 | SPC8 | 127m 75ch | 18 December 1892 | 12 July 1969 | Derby (DY) | |
| ES2 | Engine Sidings No 2 | SPC7 | ≈127m 57ch | 23 March 1890 | 8 February 1987 | Derby (DY) | |
| CBF | Epsom | BTH2 | 14m 18ch | 24 February 1929 | 29 July 1990 | Wimbledon (W) | |
| WA | Automatic signals | ||||||
| EN | Erdington | ALC1 | 2m 16ch | 1 December 1985 | Erdington [new] (EN) | ||
| REN | Distant signals | ||||||
| EN | Erdington [new] | ALC1 | 2m 16ch | 1 December 1985 | 12 October 1992 | Aston (AN) | |
| REN | Distant signals | ||||||
| - | Eridge | SCU1 | 35m 51ch | 6 January 1879 | 7 January 1990 | Oxted [new] (OD) | |
| ER | Errol | Code used from 2002 | SCM5 | 10m 44ch | 1877 | ||
| D | Eryholme | Down line automatic signals | ECM5 | 11 June 1939 | Eryholme [new] (E) | ||
| U | Up line automatic signals | ||||||
| E | Eryholme [new] | Codes used from opening | ECM5 | 38m 74ch | 11 June 1939 | 29 January 1977 | Darlington (D) |
| D | Down line automatic signals | ||||||
| U | Up line automatic signals | ||||||
| U | Essendine | Up direction automatic signals. Named Essendine North to 21 December 1964 | ECM1 | 88m 62ch | 2 December 1912 | 13 April 1975 | Little Bytham (LB) and Tallington (T) |
| Essendine North | See Essendine | ||||||
| EW | Essington Wood | Near Springhill disposal point, Bloxwich | WCC? | 1982 | Line closed? | ||
| EO | Esso Sidings | DBP3 | ≈38m 20ch | ≈28 April 1984 | Saltley (SY)? | ||
| EN | Euston | LEC1 | 0m 14ch | 27 September 1965 | August 2000 | Wembley Mainline (WM) | |
| ENX | Set back signals | ||||||
| REN | Repeater signals | ||||||
| EV | Everton | Downgraded to gate box 25 July 1976: line controlled by St Neots (SN) | ECM1 | 46m 31ch | 27 June 1894 | 17 May 1998 | Peterborough (P) |
| E | Evesham | OWW | 106m 76ch | 15 March 1957 | |||
| ES | Exchange Sidings Shunter's Cabin [Dagenham] | - | 316.73km | 26 November 2006 | Upminster [new] (UR) | ||
| ES | Exchange Sidings [West Midlands] | Downgraded to shunt frame 23 August 1969 | RBS1 | ≈111m 46ch | 17 September 1989 | Saltley (SY) | |
| ESR | Repeater signals | ||||||
| E | Exeter | MLN1 | 194m 0ch | 1 April 1985 | |||
| CL | Cornwall area signals (proposed) | ||||||
| DM | Down main line automatic signals | ||||||
| DT | Down Torbay line automatic signals | ||||||
| PH | Plymouth to Hemerdon section (proposed) | ||||||
| UA | Up Athelney line automatic signals | ||||||
| UM | Up main line automatic signals | ||||||
| UT | Up Torbay line automatic signals | ||||||
| EC | Exeter Central A | Code from 29 October 1984 | BAE2 | 171m 33ch | 15 June 1927 | 6 May 1985 | Exeter (E) |
| WDJ | Code used from 1963 to 28 October 1984 | ||||||
| CB | Exeter City Basin | MLN1 | 195m 19ch | 9 December 1962 | 14 November 1986 | Exeter (E) | |
| EW | Exeter West | MLN1 | 194m 4ch | 1913 | 3 May 1985 | Exeter (E) | |
| EJ | Exhibition Junction | Formerly named Edge Hill No 13 | WCR | 1929 | Edge Hill (EH) | ||
| Exminster | MLN1 | 198m 59ch | 9 June 1924 | 14 November 1986 | Exeter (E) | ||
| WDH | Exmouth Junction | Code used from 1963 | BAE2 | 170m 21ch | 1875 | 15 November 1959 | Exmouth Junction [new] (EJ) |
| EJ | Exmouth Junction [new] | BAE2 | 170m 21ch | 17 November 1959 | |||
| Eynsford | SBJ | 20m 32ch | 9 November 1932 | 21 February 1971 | Victoria Signalling Centre (VS) | ||
| Eyton Crossing | Gate box | WSJ2 | ≈178m 63ch | Crewe Junction [Shrewsbury] (CJ) | |||
